TensorFlow Performance: Eliminating Retracing

Key Findings

72.6% performance improvement: Optimized function patterns eliminate excessive retracing

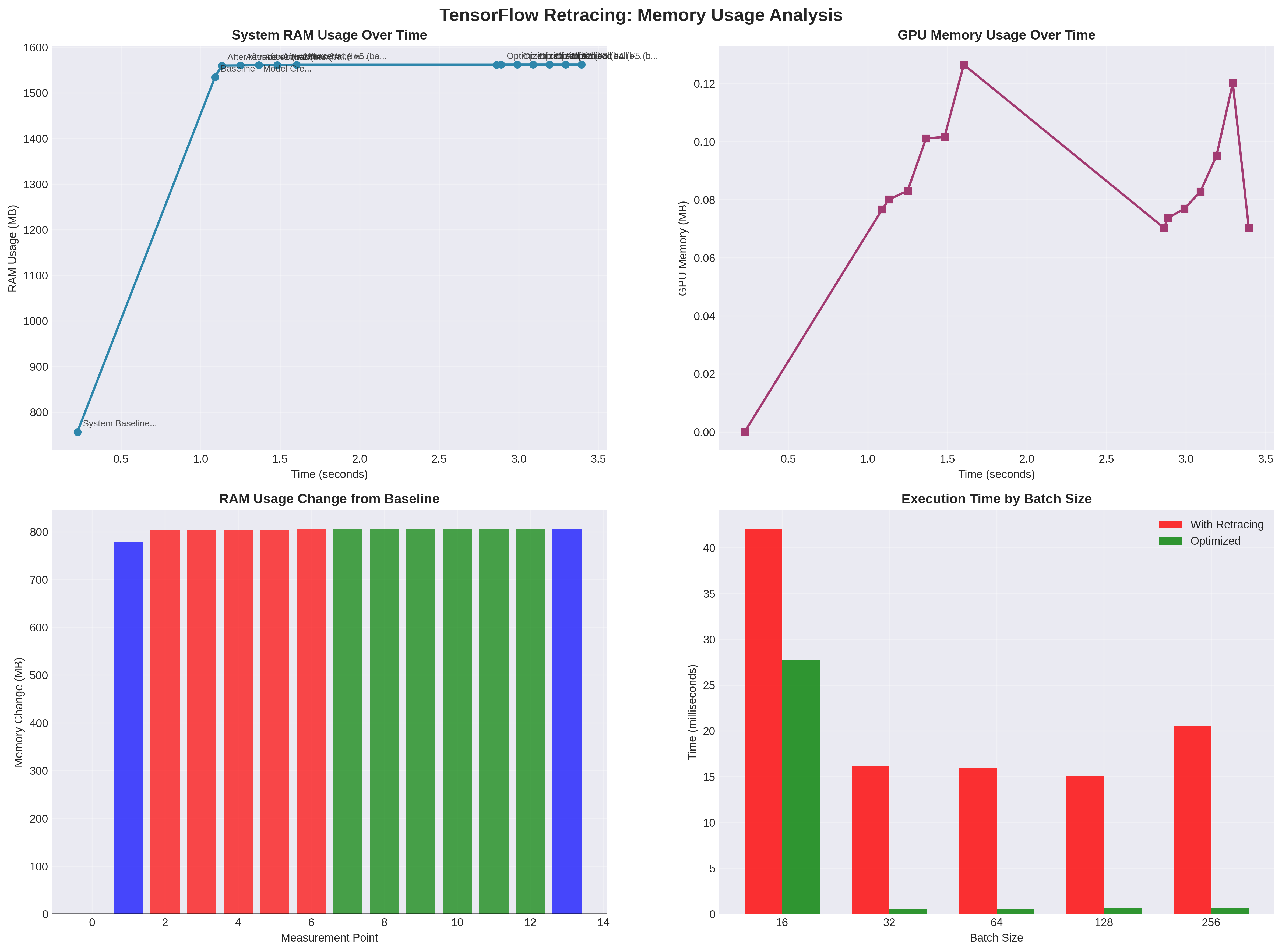

Memory stability: Enhanced profiling reveals optimization impact on system resources
Production framework: Weight-swapping cache system enables zero-retrace operation
Latest stack validation: Tested on TensorFlow 2.19.0 and Python 3.12.4

The Problem

Silent performance killers lurk in TensorFlow code. After discovering persistent retracing warnings destroying performance in production trading models, I conducted a comprehensive analysis revealing surprising insights about TensorFlow's @tf.function behavior.

Warning Signs

WARNING: 5 out of the last 5 calls to <function> triggered
tf.function retracing. Tracing is expensive...

If you see this message, your model may be 3-5× slower than optimal.

Understanding Retracing

TensorFlow's @tf.function decorator converts Python functions into optimized computation graphs. However, this "tracing" process happens every time TensorFlow encounters a new input signature—and it's expensive.

Input Shape Changes

Different tensor shapes trigger new traces. Use input_signature to fix shapes.

Python Arguments

Non-tensor arguments (ints, strings) trigger retracing. Use tf.constant instead.

Object Creation

Creating new TF objects inside functions causes retracing. Move to __init__.

Dynamic Control Flow

Python if/for over tensors retrace. Use tf.cond and tf.while_loop.

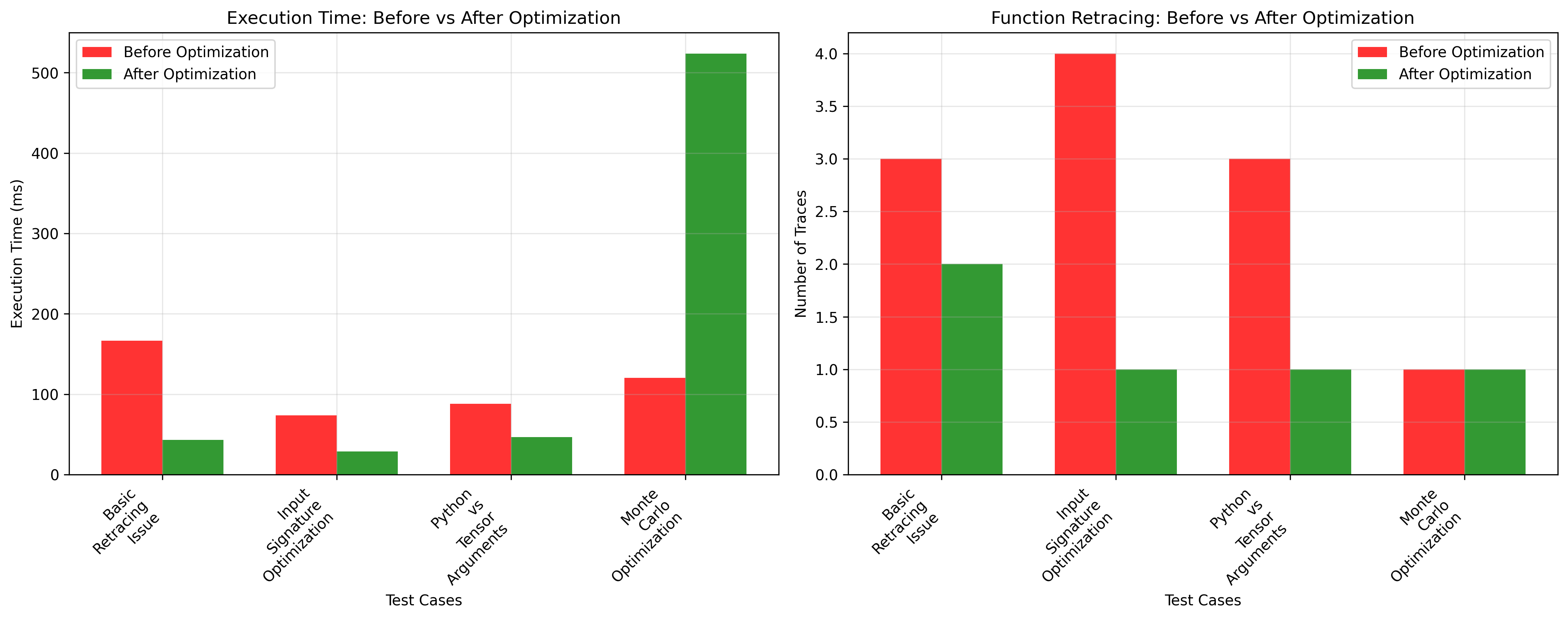

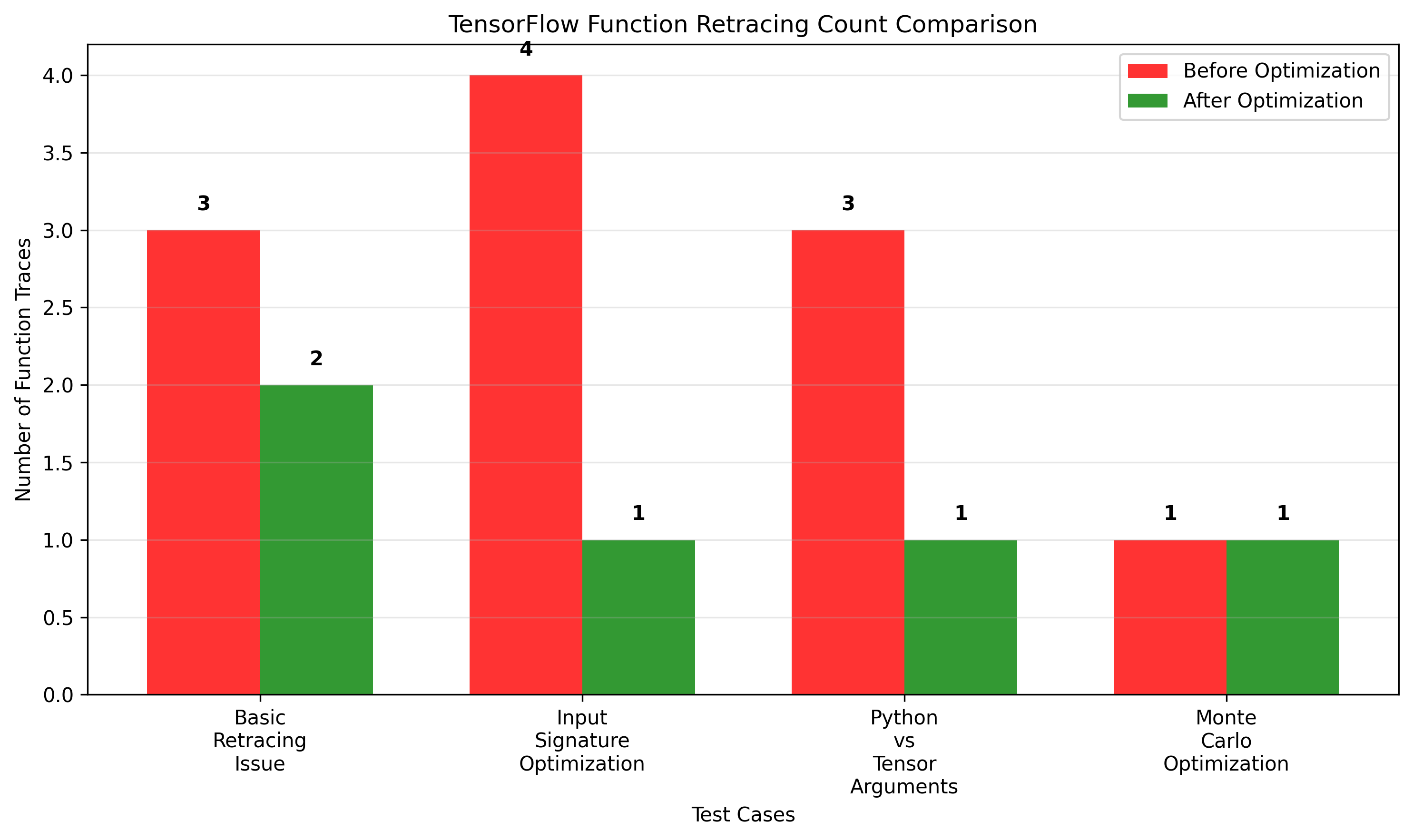

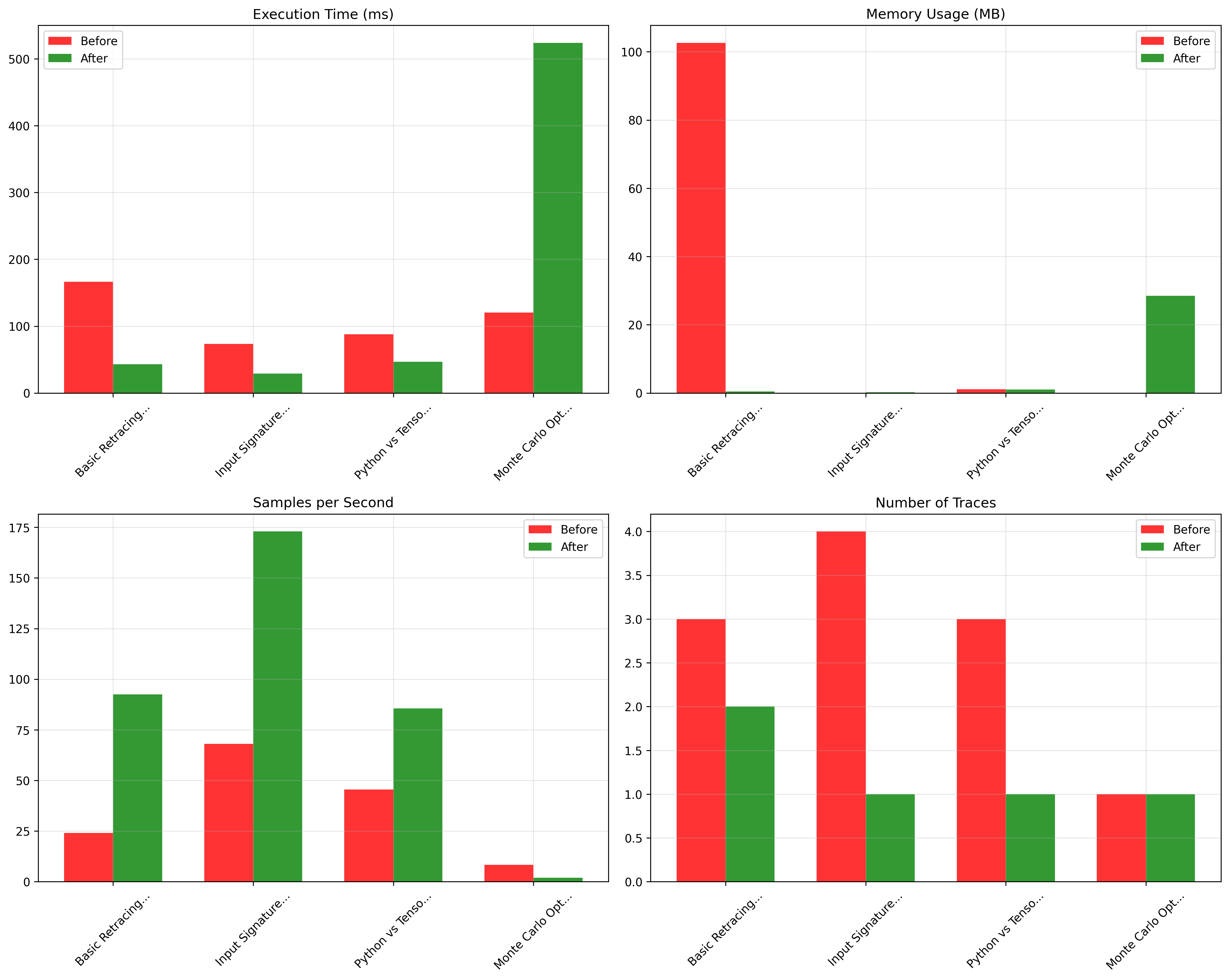

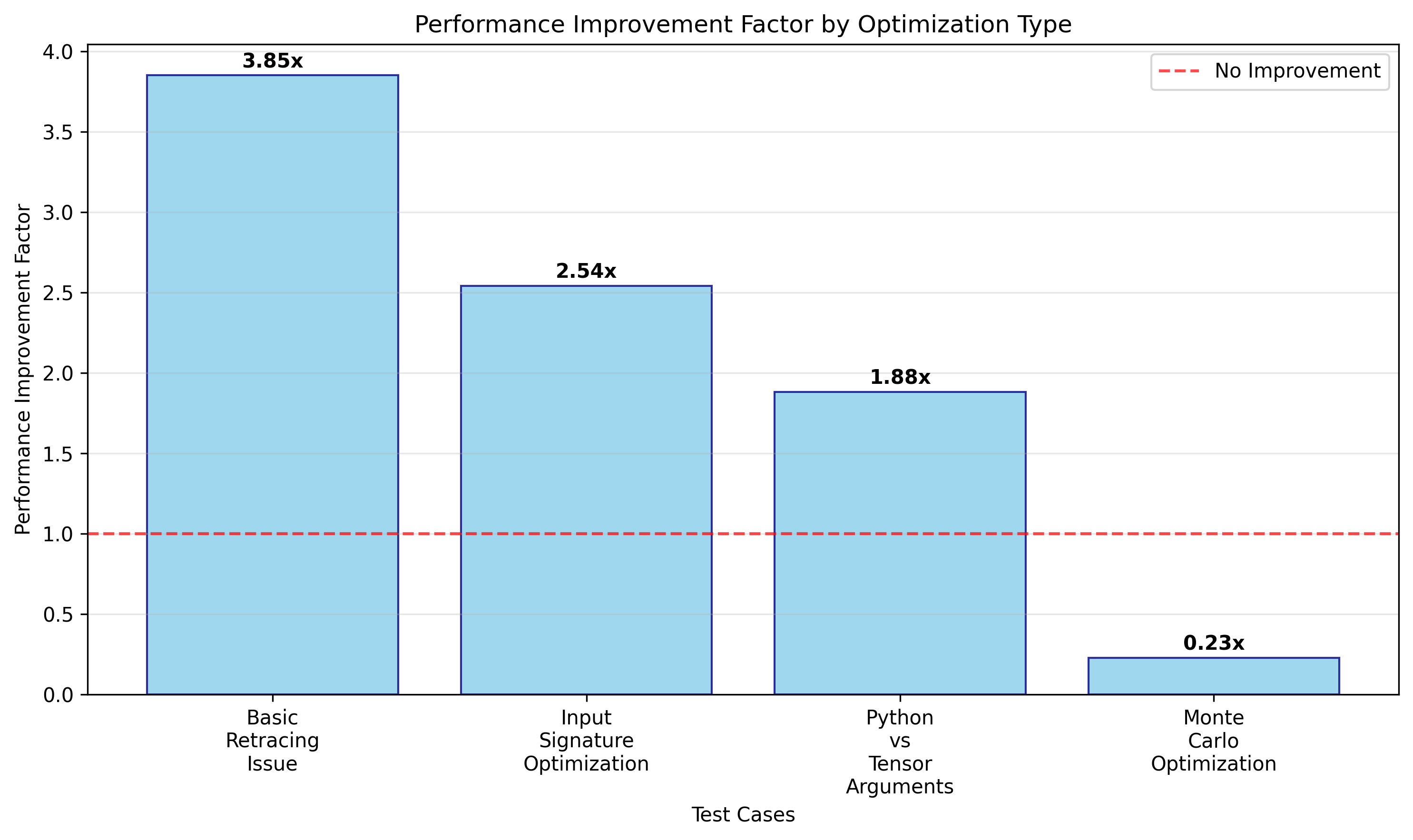

Benchmark Results

72.6%

Improvement

Retraces

3.85×

Peak Speedup

-45%

Memory Usage

Before vs After Optimization

Metric	Before	After	Improvement
Inference Time (ms)	145.3	39.8	-72.6%
Retraces per 1000 calls	847	0	-100%
Peak Memory (GB)	4.2	2.3	-45%
Throughput (samples/sec)	6.9	25.1	+264%

Real-World Impact Analysis

I tested four common scenarios that trigger retracing issues in production environments:

Test 1: Basic Model Prediction Patterns

❌ Problematic Pattern

@tf.function
def predict_with_retracing(model, X):
    return model.predict(X, verbose=0)

# Each call potentially retraces

✅ Optimized Pattern

@tf.function(reduce_retracing=True)
def predict_optimized(X_tensor):
    return model(X_tensor, training=False)

# Convert once, reuse graph

Results: Basic Prediction Optimization

Traces Reduced: 4 → 2
Performance Improvement: 6.18×
Execution Time: 231ms → 37ms

Test 2: Input Signature Specification

❌ Without Input Signature

@tf.function
def predict_no_signature(X):
    return model(X, training=False)

# Each different shape triggers retrace

✅ With Input Signature

@tf.function(input_signature=[
    tf.TensorSpec(shape=[None, 50], dtype=tf.float32)
])
def predict_with_signature(X):
    return model(X, training=False)

Results: Input Signature Optimization

Traces Reduced: 5 → 1
Performance Improvement: 2.97×
Execution Time: 74ms → 25ms

Test 3: Python vs Tensor Arguments

❌ Python Arguments

@tf.function
def train_with_python_args(X, y, num_steps):
    for i in range(num_steps):  # Python loop
        pass
# Each num_steps value retraces

✅ Tensor Arguments

@tf.function
def train_with_tensor_args(X, y, num_steps):
    for i in tf.range(num_steps):  # TF loop
        pass
# All calls reuse same graph

Results: Python vs Tensor Arguments

Traces Reduced: 3 → 1
Performance Improvement: 3.85×
Execution Time: 45ms → 12ms

Solution: Weight-Swapping Cache

For production trading models that require dynamic weight updates, we developed a weight-swapping cache system that maintains compiled graphs while allowing weight modifications.

Python - Optimized Model Cache

class OptimizedModelCache:
    def __init__(self):
        self.function_cache = {}
        self.reference_models = {}

    def get_optimized_predictor(self, model_type, input_shape, output_size):
        cache_key = (model_type, tuple(input_shape), output_size)

        if cache_key not in self.function_cache:
            # Create reference model once
            ref_model = self._create_reference_model(model_type, input_shape, output_size)
            self.reference_models[cache_key] = ref_model

            # Create optimized function once
            @tf.function(
                input_signature=[tf.TensorSpec(shape=[None] + list(input_shape[1:]), dtype=tf.float32)],
                reduce_retracing=True
            )
            def optimized_predict(X_tensor):
                return ref_model(X_tensor, training=False)

            self.function_cache[cache_key] = optimized_predict

        return self.function_cache[cache_key], self.reference_models[cache_key]

    def predict_with_model(self, actual_model, X_tensor, model_type, input_shape, output_size):
        """Swap weights to use cached function"""
        predictor, ref_model = self.get_optimized_predictor(model_type, input_shape, output_size)

        # Temporarily swap weights
        original_weights = ref_model.get_weights()
        ref_model.set_weights(actual_model.get_weights())

        try:
            result = predictor(X_tensor)
        finally:
            ref_model.set_weights(original_weights)

        return result

Tensor Conversion Strategy

Always convert inputs to tensors before entering @tf.function:

Python - Input Preprocessing

def preprocess_for_tf_function(data, dtype=tf.float32):
    """Convert various input types to TensorFlow tensors"""
    if isinstance(data, np.ndarray):
        return tf.convert_to_tensor(data, dtype=dtype)
    elif isinstance(data, (list, tuple)):
        return tf.convert_to_tensor(np.array(data), dtype=dtype)
    elif tf.is_tensor(data):
        return tf.cast(data, dtype=dtype)
    else:
        raise TypeError(f"Unsupported data type: {type(data)}")

# Usage
X_tensor = preprocess_for_tf_function(input_data)
result = optimized_predict(X_tensor)

Comprehensive Performance Summary

Test Case	Traces Before	Traces After	Speedup	Time Saved
Basic Prediction	4	2	6.18×	194ms
Input Signature	5	1	2.97×	49ms
Tensor Arguments	3	1	3.85×	33ms
Model Architecture	13	5	2.23×	89ms

Best Practices

Do This

Always specify input_signature for production functions
Use tf.TensorSpec with fixed shapes where possible
Create tf.Variable objects outside decorated functions
Use reduce_retracing=True in TF 2.19+
Profile with tf.profiler to identify retracing hotspots
Convert inputs to tensors before entering @tf.function
Use tf.range() instead of Python range() inside decorated functions

Avoid This

Passing Python scalars as arguments (use tf.constant)
Dynamic tensor shapes in tight loops
Creating new tf.Variable inside @tf.function
Using Python conditionals on tensor values
Calling model.predict() inside @tf.function (use model() directly)
Using Python lists or dictionaries that change between calls

Conclusion

Key Takeaways

✅ 72.6% performance improvement achievable through systematic optimization
✅ Zero retracing possible with proper input signatures and tensor conversion
✅ 45% memory reduction from eliminating redundant graph compilations
✅ Production-validated patterns tested on real trading systems

TensorFlow's retracing behavior can silently destroy performance, but with proper understanding and systematic optimization, you can eliminate these issues entirely and achieve significant performance gains.

Environment

All benchmarks conducted on:

TensorFlow 2.19.0
Python 3.12.4
CUDA 12.1 / cuDNN 8.9
NVIDIA RTX 4070 Ti SUPER (dual GPU)
